MiNano Form
A microfluidic instrument and cartridge system for parallel lipid nanoparticle formulation. Designed for screening and formulation development, up to in vivo testing and small-batch preclinical supply.
- Channels
- Up to 8choose 1 to 8 formulations per run
- Volume range
- 80 µL – 10+ mLper formulation
- Cleaning
- Nonesingle-use cartridges
- Speed
- 8 × 1 mLin 20 seconds
Built for throughput and convenience
Eight channels, total control
Active feedback locks flow rate and ratio across all eight channels, so every run is reproducible.
Ready to run
Pre-loaded methods for common lipid and payload combinations, or build and save your own.
Swap, don't clean
Cartridges for any volume. No cleaning and no instrument setup between runs.
Cartridges for any volume
Every cartridge carries the same aerofoil mixer geometry, from 80 µL sample volume for screening up to 10+ mL. Pick the cartridge that fits the batch: the formulation you optimise at small scale is the formulation you scale up.

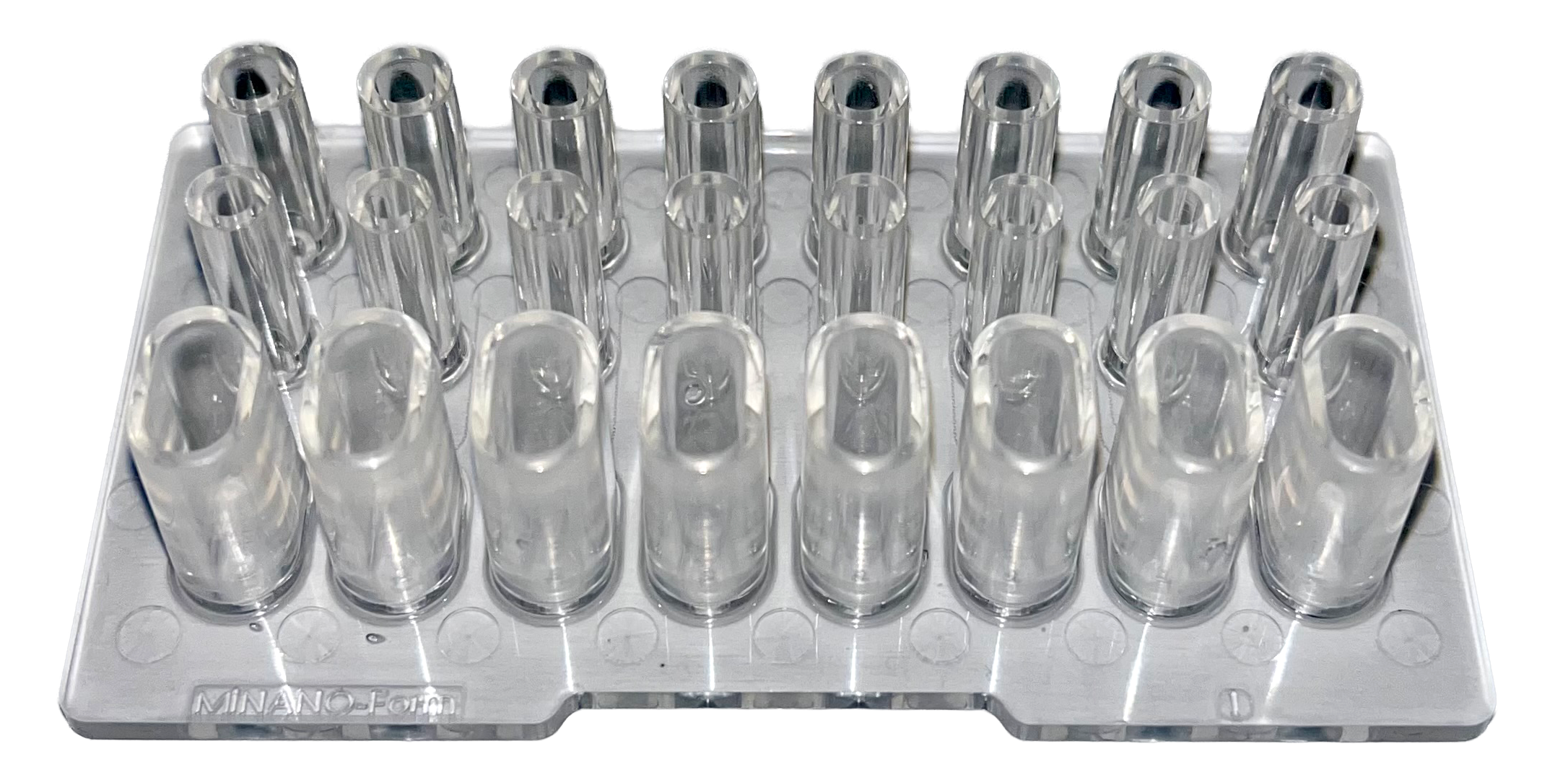

Screening cartridge
80–100 µL per channel. For lipid library screening and designed experiments.

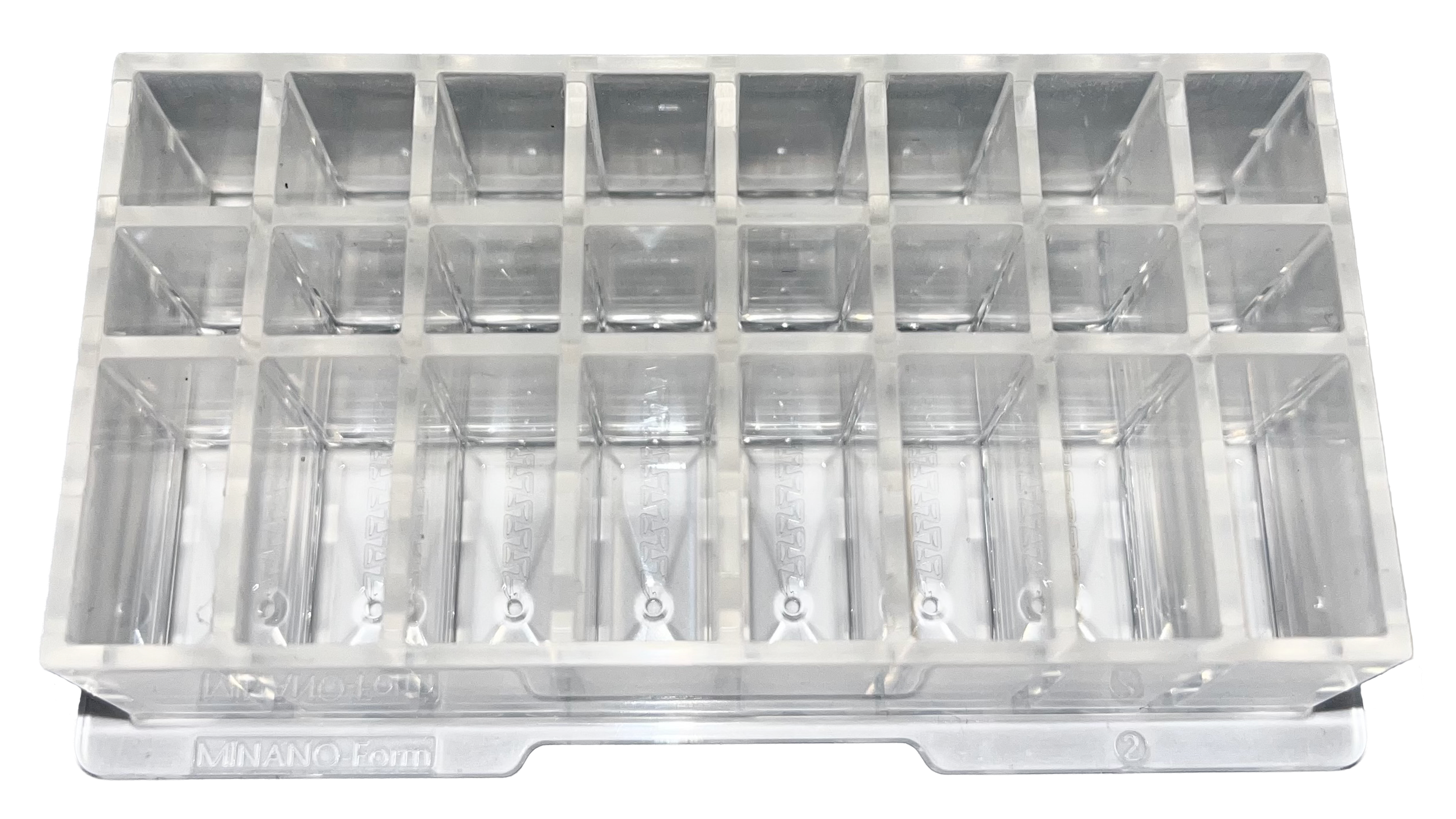

Optimisation cartridge
400 µL to 1 mL per channel. For payload and process optimisation, in vitro and in vivo testing.

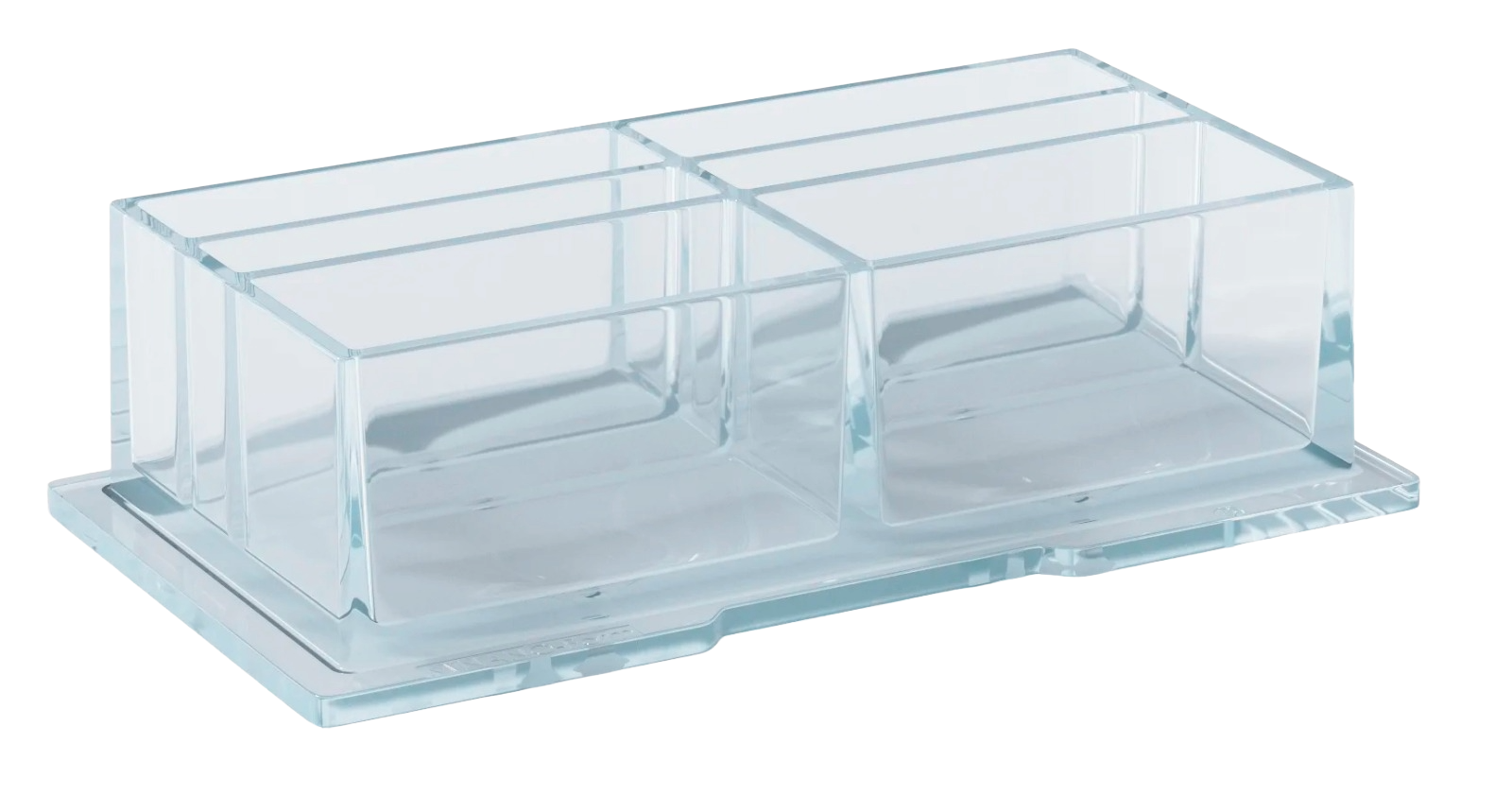

Scale-up cartridge
1–5 mL per channel. For small batches for in vivo and preclinical studies.
From sample to nanoparticles in three steps
- 1
Load

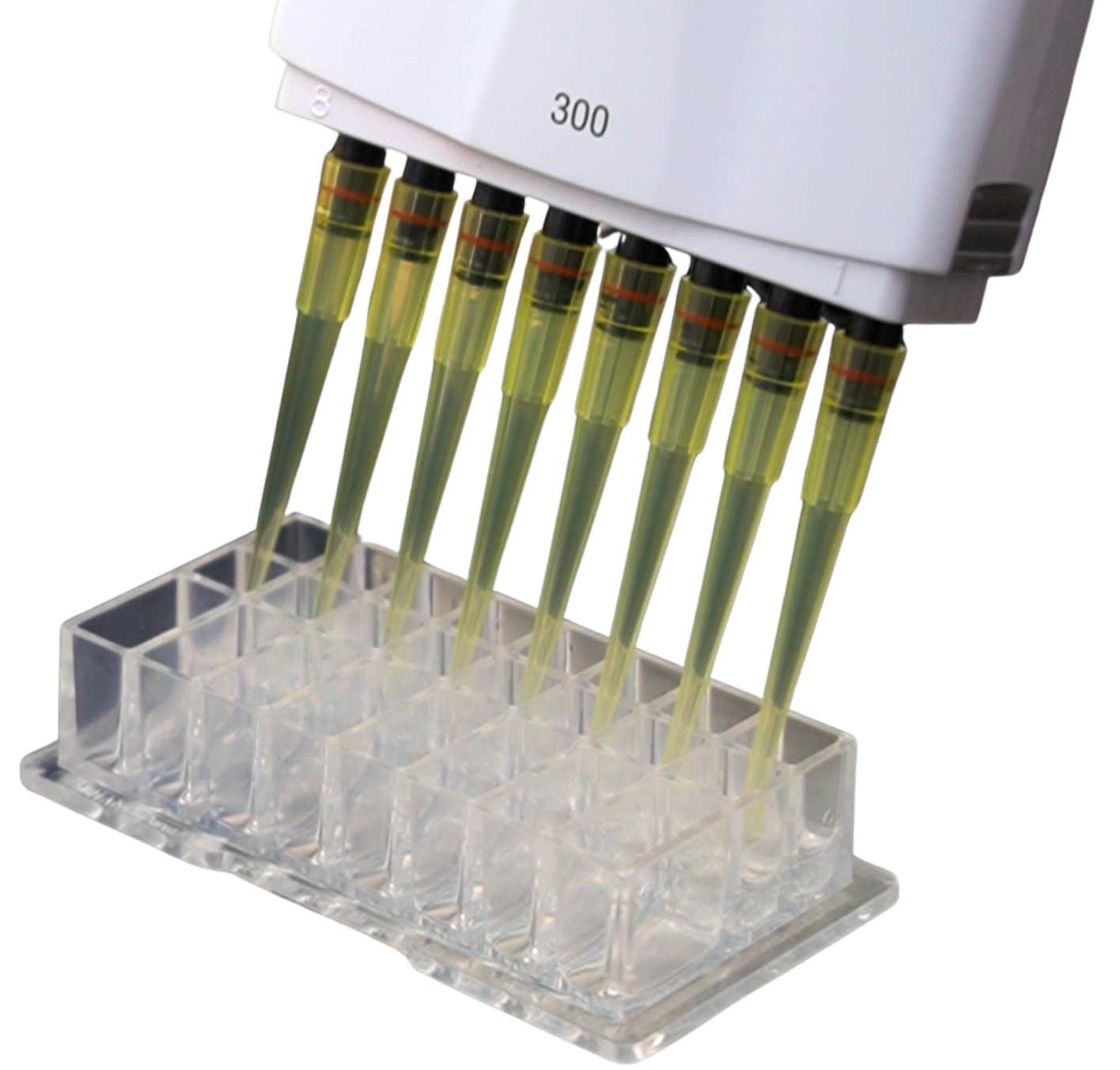

Load organic and aqueous phases with a pipette or a liquid handler.
- 2
Run
Select a method or define your own. The instrument controls flow and pressure throughout the run.
- 3
Collect
The output stays in the cartridge, ready for downstream characterisation.
Built to work with your liquid handler
The cartridge format fits straight into an automated workflow. A liquid-handling robot can load the cartridges, move them, and pick up the finished nanoparticles, so the whole formulation runs with minimal hands-on time.
Filled by your robot
Your liquid handler fills the lipid and aqueous wells directly, using the same 8-channel layout as manual pipetting.
Easy for robots to handle
Cartridges are compact, single-use and easy to grip, so a robotic arm can load and unload them between runs.
LNPs ready on the deck
The finished nanoparticles stay in the cartridge wells, where the same liquid handler can transfer, dilute or plate them for the next step.
Interested in automation options? Contact us to talk about integrating MiNano Form with your system.

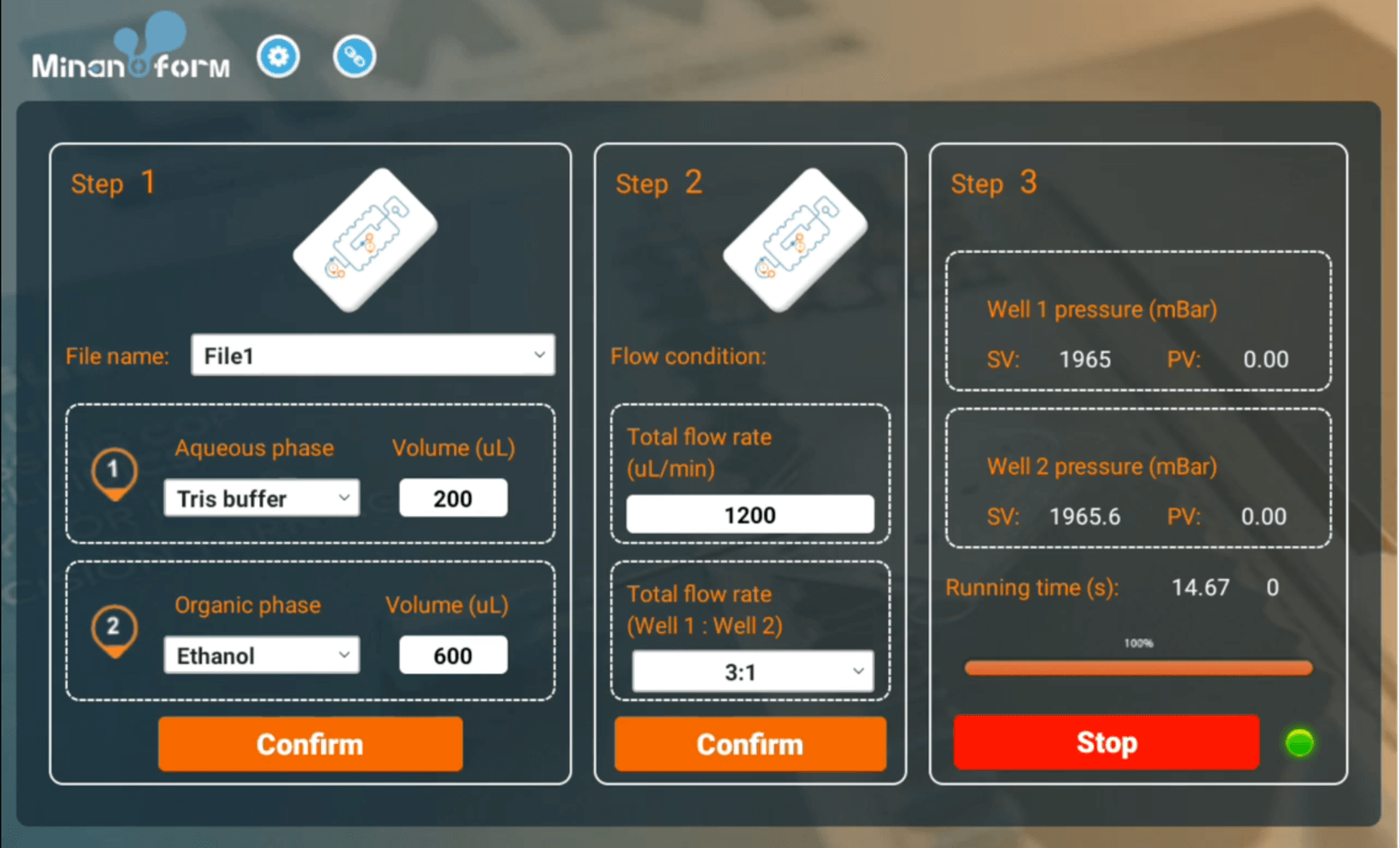

One-screen interface
Set up, run and monitor every formulation from a single screen. Define your phases, flow rate and ratio, and the instrument handles flow and pressure in real time.
